InDesign

Align or distribute objects

You can use the Align panel to align or space selected objects horizontally or vertically to the selection, margins, page, or spread.

Objects distributed horizontally to selection (top) and to margins (bottom)

To show or hide additional panel options, choose Show Options or Hide Options from the panel menu.
  1. Select the objects to align or distribute.
  2. Choose Window > Object & Layout > Align to display the Align panel.
  3. From the menu at the bottom of the panel, specify whether you want to align or distribute objects based on the selection, margins, page, or spread.
  4. Do one of the following:

    • To align objects, click the button for the type of alignment you want.

    • To distribute objects, click the button for the type of distribution you want. For example, if you click the Distribute Left Edges button when Align To Selection is turned on, InDesign makes sure that there is an equal amount of space from left edge to left edge of each selected object.

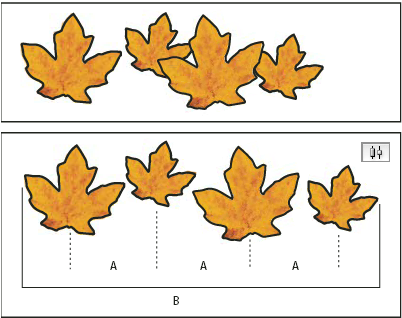

      Using the Distribute Horizontal Centers option for even spacing

      A.
      Creates even spacing between the centers of each object

      B.
      Keeps the overall width the same as before the transformation

    • To set the space between objects, either center to center or edge to matching edge, select Use Spacing under Distribute Objects, and then type the amount of space you want to apply. Click a button to distribute the selected objects along their horizontal or vertical axes.

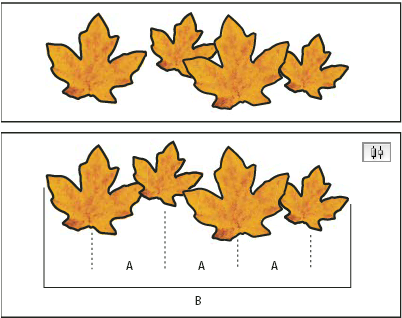

      Using the Distribute Horizontal Centers option and adding a value for Use Spacing

      A.
      Spaces the objects evenly from their centers by a specified value

      B.
      Changes the overall width of the objects as a whole

    • To set the space between objects (facing edge to facing edge), under Distribute Spacing, select Use Spacing and type the amount of space you want between the objects. (If Distribute Spacing is not visible, choose Show Options in the Align Panel menu.) Then, click the Distribute Spacing button to distribute the objects either along their horizontal or vertical axes.

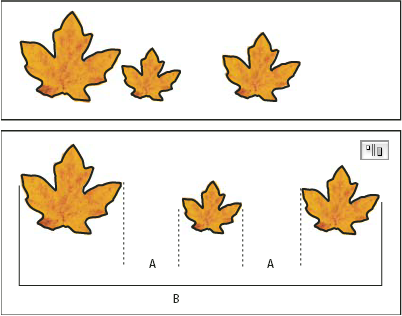

      Using the Distribute Horizontal Space option and adding a value for Use Spacing

      A.
      Creates spaces of a specified value between each object

      B.
      Changes the overall width of the objects as a whole

      When you use spacing with vertical distribution, selected objects are spaced from top to bottom, starting with the top-most object. When you use spacing with horizontal distribution, selected objects are spaced from left to right, starting from the left-most object.
